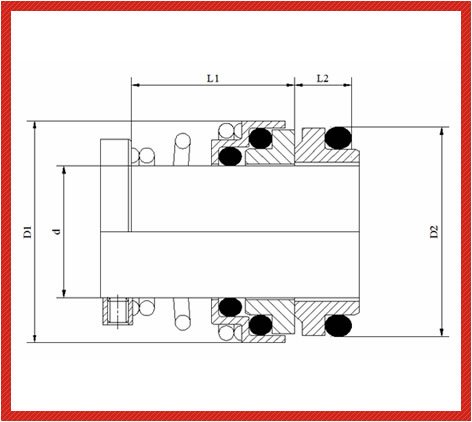

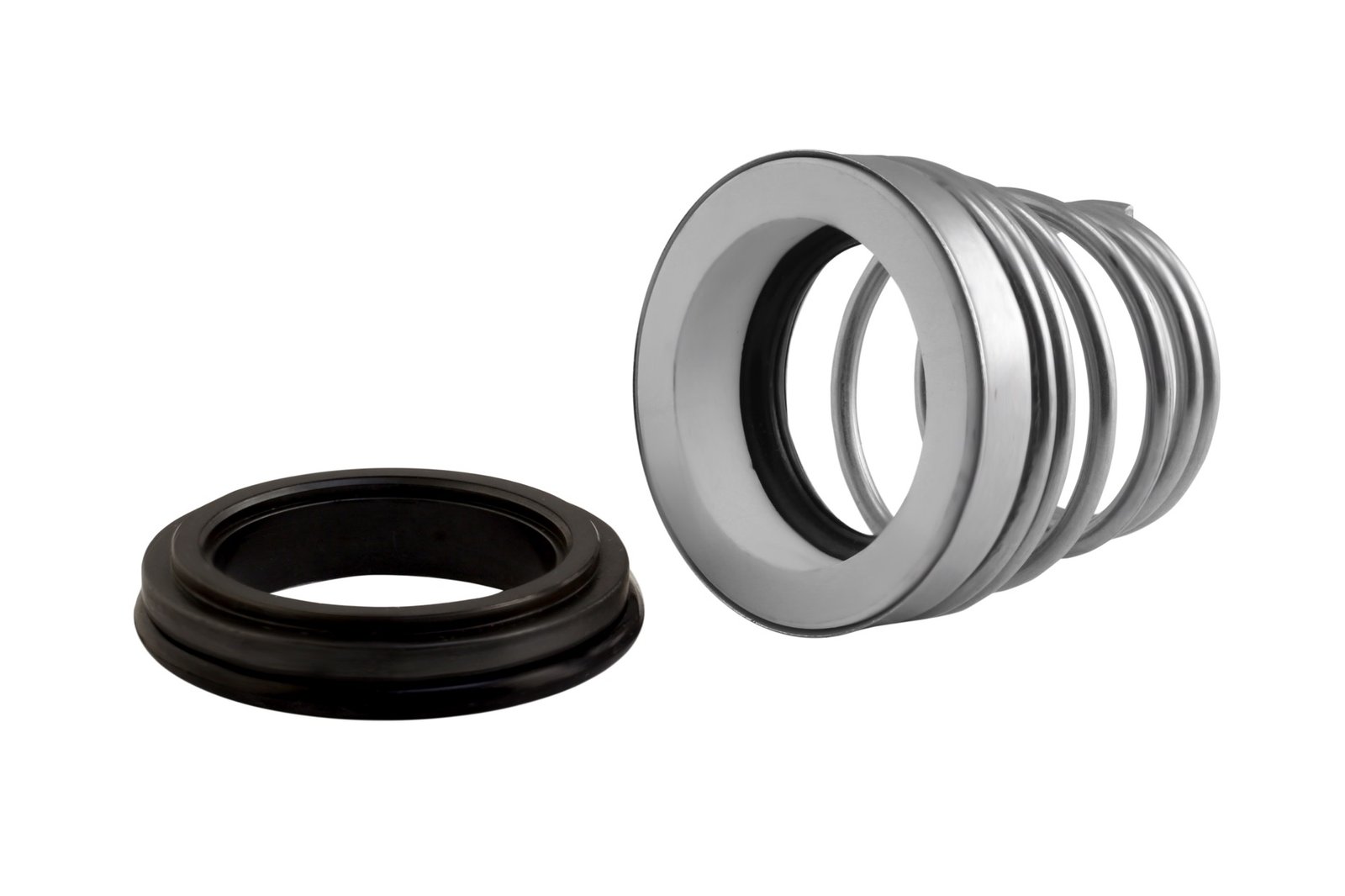

O’ Ring mounted, conical spring seal with pressed stainless Seal head retainer and pressed carbon seat. Highly preductionised seal capable of wide ranging service. Seal and seat faces can be Inter-changed with each other and can be easily replaced.

OPERATING LIMITS

SHAFT DIAMETER d1 : 12…32mm
PRESSURE p : 6 bar
TEMPERATURE t : -20…+150°C

SEAL CHARACTERISTICS :

• SINGLE ACTING
• INSIDE MOUNTED
• CONICAL SPRING
• INDEPENDENT OF DIRECTION OF ROTATION
• UNBALANCED
