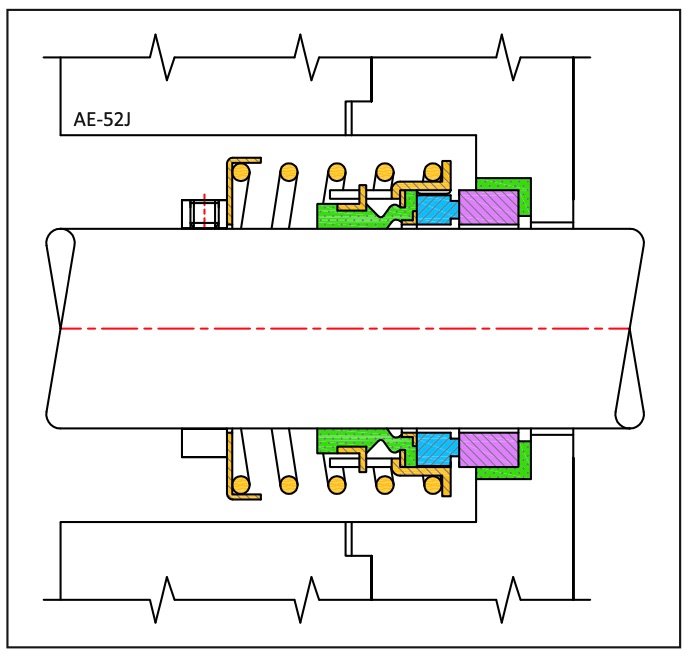

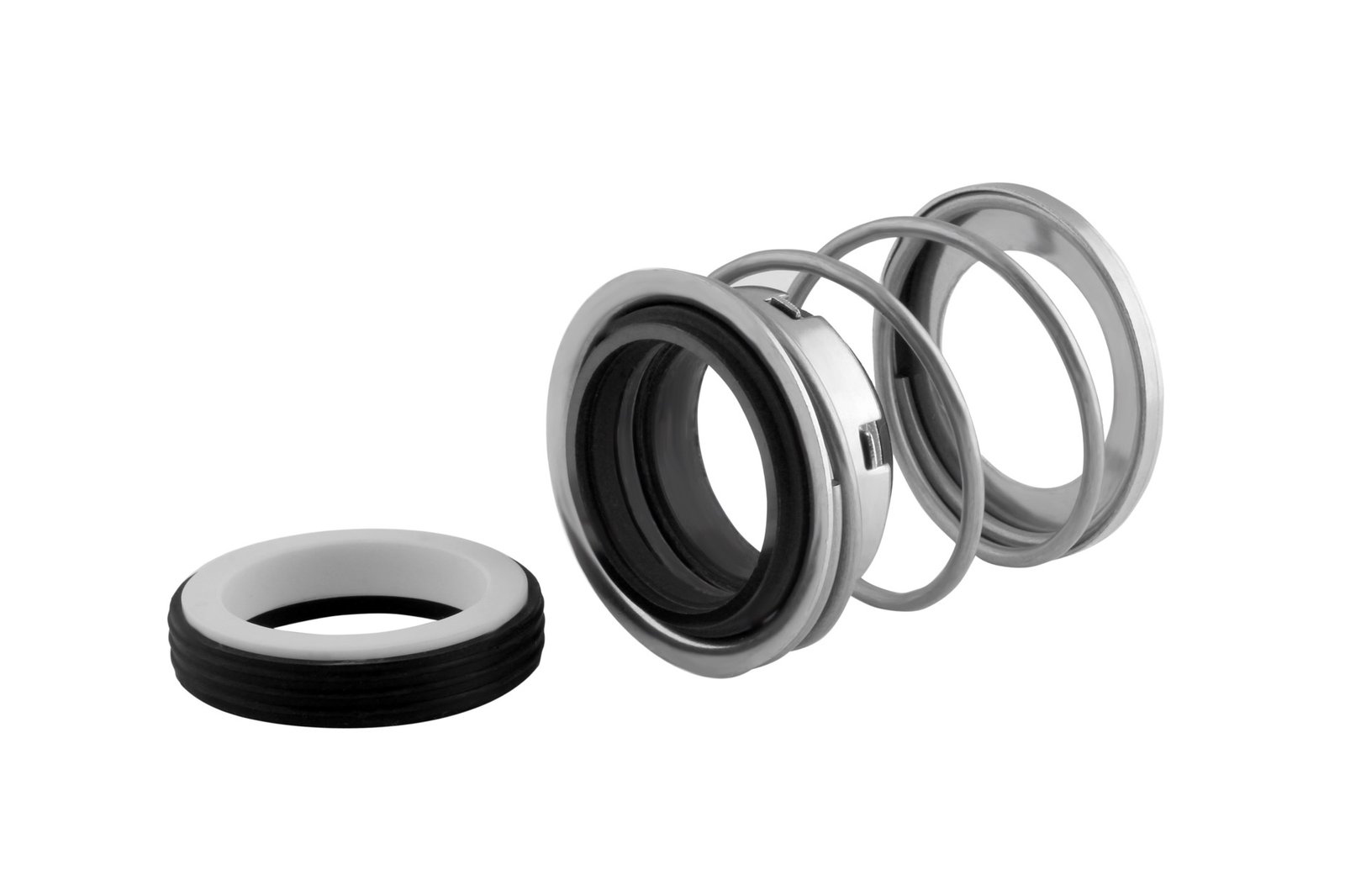

These types of seals are single coil spring with elastomeric bellows, designed for petrochemicals, food processing, pulp & paper and other demanding applications. Seal can be used for higher speed as well as for higher pressure. These seals function independent of direction of rotation. Special materials can be offered to meet specific requirements.

OPERATING LIMITS

SHAFT DIAMETER d1 : 16…75mm
PRESSURE p : 10 bar
TEMPERATURE t : -20…+120°C

SEAL CHARACTERISTICS :

• SINGLE ACTING
• INSIDE MOUNTED
• INDEPENDENT OF DIRECTION OF ROTATION
• UNBALANCED
